32mm China DC Gearmotor Company

ISO / TS16949 certification, Applicable to multiple smart industries

Description

Quick Details

Place of Origin	Zhejiang,China
Brand Name	Twirl Motor
Certification	CE, ROHS, SGS, TUV, IATF16949
OEM & ODM Service	Available
Supply Ability	180000 Pieces/per Month
Lead time	1-2 weeks for samples, 3-4 weeks for mass production.
Sample MOQ	1 Piece
Mass production MOQ	500 pieces
Payment term	T/T, Paypal ,WesternUnion

Product features

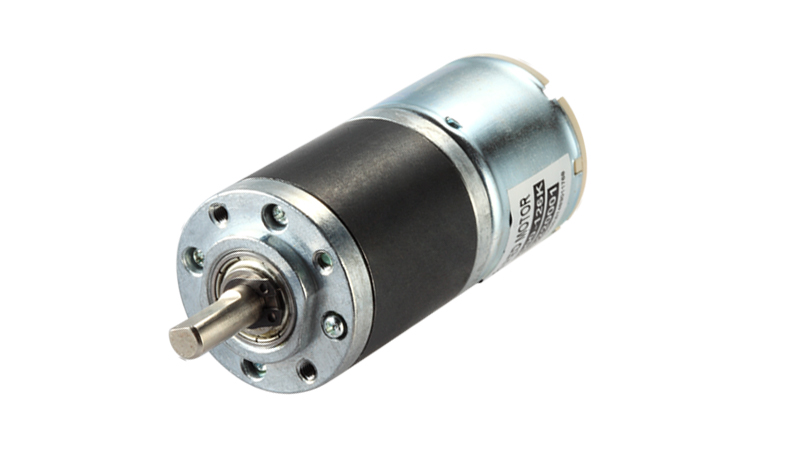

Product name	32mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel,metal planet gearhead
Customization item	speed ,torque, flange ,shaft, IP rating or other item
Voltage:	12VDC,24VDC,36VDC or customization
Output Shaft Shape	D-cut,Keyway,Round ,Hexagon, or customized
Output Power	2~5 Watt or customized
Two channel hall effect encoder	3PPR,7PPR,Click ME-GR to see details
Noise (DB)	<55DB measured by noise tester at 30cm distance
Lifetime	1000+ hours (varies by application)

Gearbox data (PG32)

Gearbox housing material	Powder Metallurgy
Geartrain material	40Cr Steel , Powder Metallurgy
Bearing at output shaft	Dual Ball bearing
Lubricant in gearbox	Graphene oil
Axial play	<0.2mm
Radial play	<0.1mm(5mm from mounting face)
Rotation direction	CW/CCW reversible
Backlash at no-load	<1.5°
Operating temperature range	-40 °C～+100°C

Motor data

How to calculate the output data of the geared motor?

1:Output no load speed=Motor Speed(No-load)/Reduction Ratio

2. Output rated load torque= motor rated torque X reduction ratio X gearbox efficiency

An example of PG32 Gearbox+Motor assembly
Model Number	PG32 GR124500-585K
Reduction ratio	585:1
Motor name	GR124500
Output no load speed	7.6rpm +/- 10%
Output rated load speed	6rpm +/- 10%
Output rated load torque	16kg.cm
