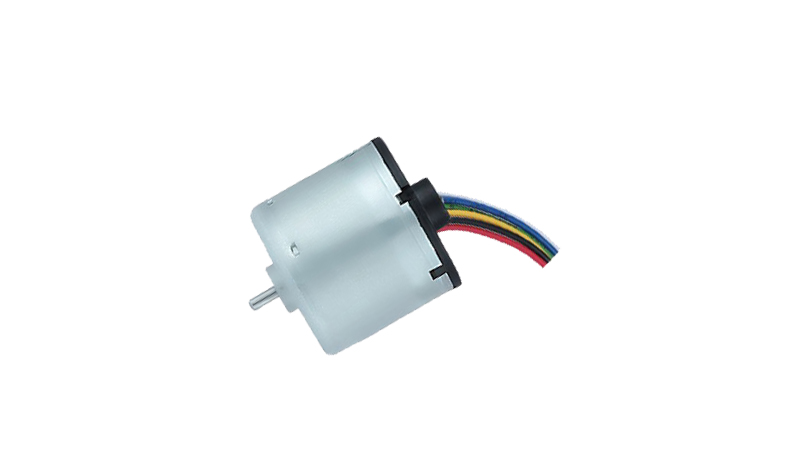

32mm hall effect sensor brushless dc motor
BLDC3229 series Diameter 32mm
bldc motor with built-in controller
Rated power3~ 10Watt
bldc motor with built-in controller
Rated power3~ 10Watt
Description
Reviews
Benefits of the brushless motor
DC motors with no brushes mean no mechanical contact, no dust and no sparks.There are no motor brushes to wear out because the windings are electrically commutated.Exquisitely efficient small form factor BLDC motor that has peak operating efficiency . High torque from a small form factor, with low power consumption and peak performance at lower RPM for quiet operation.
Speed and direction is controlled easily and accurately, offering you a full range of options with every motor.
The Brushless Motors offers distinct advantages over the competition: exceptionally long service life (over 20000 operating hours), very low sound level (no brushed switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics.
This motor features built-in controls,versatile and very simple to use.
Why do we use BLDC motors?
In manufacturing, brushless motors are primarily used for motion control, positioning or actuation systems. Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low maintenance.
BLDC3229 outline
Motor Data
Bushless motor Connection
How to operate the brushless wires?
This motor features built-in controls,versatile and very simple to use.
1) Red wire(+) of the controller is connected to +12VDC, and balck wire (- )to GND.
2)The green linkes the PWM
3)When the white wire is shut off ,the motor runs at full speed with CW
4)The motor stops running when the white wire is connected to black wire.
5)When the yellow wire was connected to black one, the motor runs with CCW
6)The blue wire can be detected by OSC means speed signal output
7)When the green linkes the black,motor is running
8)The PWM's VHz cycle 20KHz, high-level 5V, low-level 0V, the phase 0, DUty 0%.
If the duty is adjusted to 100%,motor stops running.
