36mm Brushless Motor

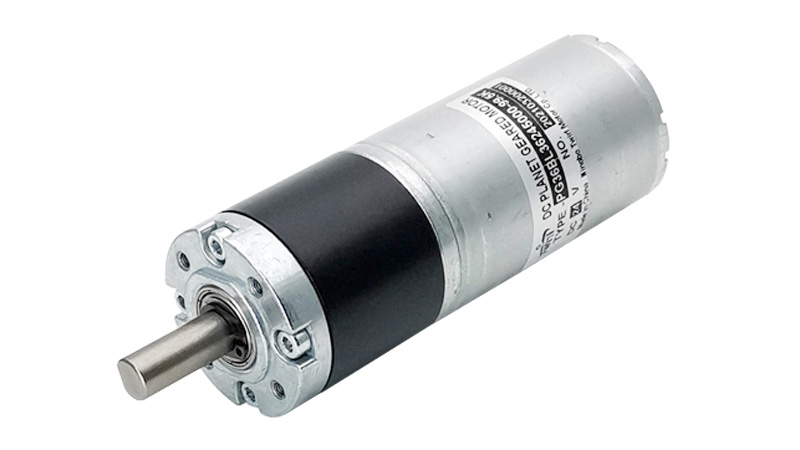

PG36BL36 series  Gearmotors consist of 36mm planetary gearboxes and 36mm BLDC motors.

The planetary gear motors are equipped with a hall sensor type brushless DC motor to increase the torque and lower the output speed to meet your application or project demands.Twirl offers rushless DC Gearmotors with hall only feedback or with a control board that is fully integrated to the internal motor.When mated to our planetary gearbox, this brushless gearmotor offers extremely long life and high torque in a compact size.

1)Red wire(+) of the controller is connected to +24VDC, and black wire(-) to GND.

2)Green wire is connected to +5VDC, and black wire to GND

3)When the white wire is shut off ,the motor runs at the highest speed with CW.

4)The motor stops running when the white wire is connected to the black one.

5)When the yellow wire Is connected to black one, the motor runs with CCW.

6)The blue wire which can be detected by OSC means speed signal output.
