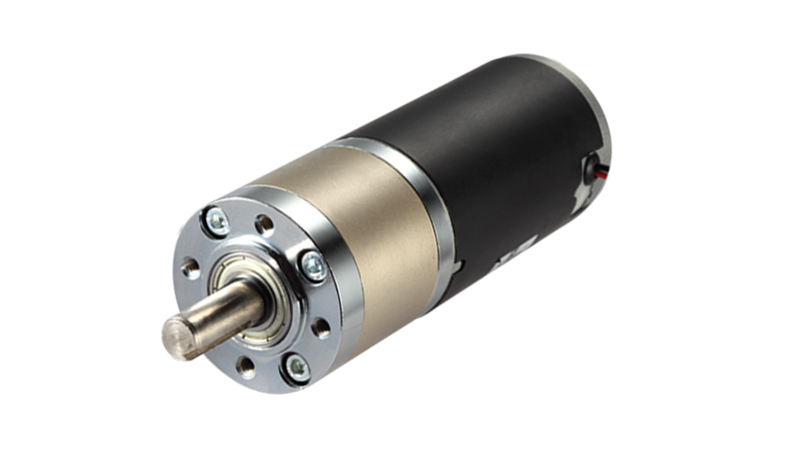

45mm Planetary Gear Motor (10~40 Watt)

PG45ZY45 Series
Dia：Ø45×(109～154.5)mm
Rated torque:20kg.cm~120kg.cm

Get a Quote Now

Description

PDF Download

Reviews

OEM custom engineered motors and gear motors.Twirl Motor designs each motor uniquely for your application.

PG45ZY45series Gearmotor consist of 45mm PG45 series planetary gearbox and 45mm ZY45 series brushed motor.

The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.

Specifications

Product name	45mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Gearbox housing material	1045 Steel
Geartrain material	40Cr Steel , Powder Metallurgy
Shaft material	40Cr Steel
Output shaft support	Dual Ball bearing
Rotation direction	CW/CCW reversible
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949
Encoder	3PPR,7PPR,13PPR ,Click ME-3237D to see details
Shaft Configuration	D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item	speed , torque, flange , shaft, IP rating
Additional requirements	Lead wire, connector, coupling ,encoder,or other parts

Key Features

---Various gear ratios enable either speed reduction or to increase the torque capability.

---Advantageous torque with minimum space requirements.

---Suitable for continuous, reversing and intermittent operation.

---Can be installed in any mounting position.

---High Torque, Low Energy Consumption, Low Noise.

Options

---Power-on or power-off type electromagnetic brake.

---Capacitor& resistor for EMC suppression.

---Special shaft material and dimensions.

---Custom design; OEM products available.

---Professional DC gear motor customization at various RPM, torques, OD, voltages, IP rating , etc.

CUSTOMIZED DESIGN WELCOME

Twirl can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.

Certificates&Qualifications

CE, ROHS, SGS, TUV, IATF16949 quality management system

The following is the specification of the standard product.
