56mm Planetary Gear Motor (12~24V)

PG56ZY58 series Diameter56mm
Power-off electromagnetic brake
Rated torque:100kg.cm~400kg.cm

Get a Quote Now

Description

PDF Download

Reviews

Providing The Right Products With The Best Team For Over 20 Years. Customized Solutions.IATF16949 Certified. Widest Range Available.Industry Experts.Types: spur Gear motor, planetary gear motor,worm gear motor , Speed Reducer.

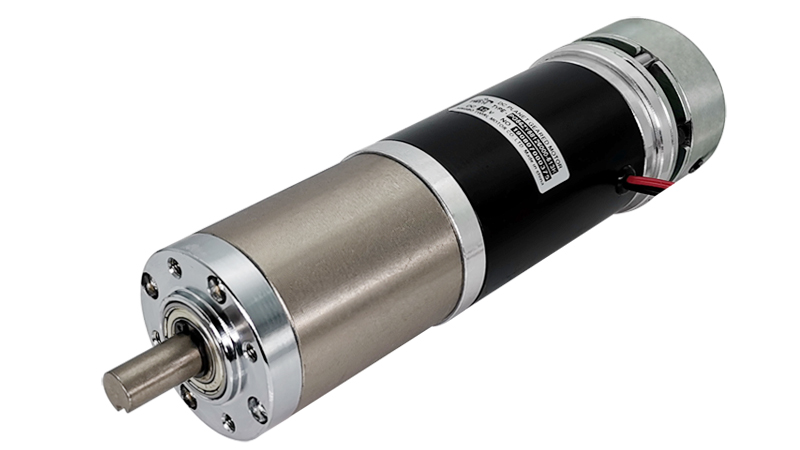

PG56ZY58 series Gearmotor consist of 56mm PG56 type planetary gearbox and 58mm ZY58 type brushed motor,with power off brake .

Specifications

Product name	PG56ZY58 series,56mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Housing material	Steel
Geartrain material	Steel , Powdered Metal
Bearing at output shaft	Ball bearing
Lubricant	Grease for high-low temperature
Axial play
Radial play
Rotation direction	CW/CCW reversible
Backlash at no-load
Operating temperature range	-40 °C～+100°C
Noise (DB)
Lifetime	1000+ hours (varies by application)
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949
Encoder	13PPR ,Click ME-3237D to see details
Brake rated torque:	1.5Nm
Brake engaging time	20ms
Brake disconnecting time	25ms

CUSTOMIZED DESIGN WELCOME

Twirl can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.

Brake Specifications

It is a power off type electromagnetic brake which is connected directly with the motor.

The motor will stop instantly and keep load when the supply power is off.

It is specially suitable for the safety brake in the condition of unconsciously power off.

Firstly connect the brake wire to the 12V/24V power, and then connect the motor wire to another 12V/24V power.

The time interval should above 300mS.

When the motor power is on,the brake release.When the motor power is off,the brake will operate.
