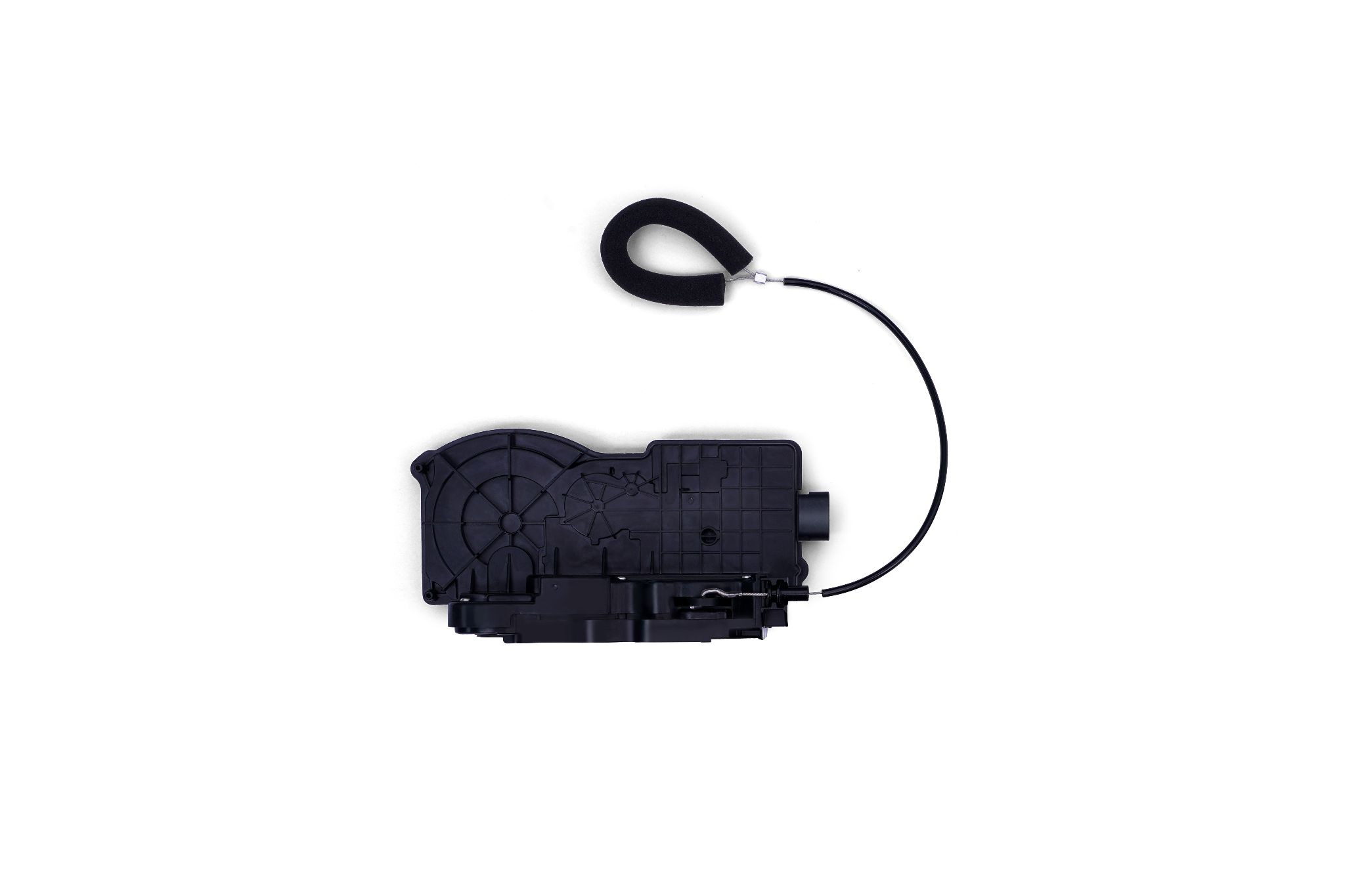

Electric Suction Lock System
streamlined, Lightweight Design
Description
Reviews
Introduction
Improving and innovating upon the electric suction lock we designed for Geely Auto, we have refined the lock to be compatible with a wider range of vehicles, providing a smoother and quieter user experience. The Electric suction lock is able to be plugged right into all versions of Tesla Model Y and older versions of Tesla Model 3.
Key Features
- Our product features a streamlined and lightweight design, ensuring ease of handling and installation.
- We offer competitive pricing to provide exceptional value for our customers without compromising on quality.
- Designed for seamless integration, our product is tailored for use with Tesla Model Y and earlier iterations of the Tesla Model 3, ensuring a hassle-free user experience.
- With compatibility extending to over 100 different car models, our product can be adapted for use with additional components, ensuring versatility and convenience across a wide range of vehicles.
Specification
| Items | Performance |
|---|---|
| Full-lock longitudinal load | >15,000 N |
| Half-lock longitudinal load | >5,000 N |
| Full-lock lateral load | >12,000 N |
| Half-lock lateral load | >5,000 N |
| Corrosion resistance | 144 hours (ASTM B117); Base plate and striker: 480 hours (ASTM B117) |
| Operating temperature | -40°C to 80°C |
| Operating voltage | 9 VDC to 16 VDC |
| Durability | 100,000 slam cycles |
| Holding force | >500 N @12V RT |
| Compatible latch diameters | 7.5 mm |
| Electric opening time | <1 second @12V RT |
| Electric closing time | <2 seconds @12V RT |
| Stall current | <5A @12V RT |
| Inertia | >30 G |
| Switch protection level | IP67 |
| Sound quality | >At room temperature and pressure under no-load conditions, self-absorbing sound pressure level ≤55 dB, measured at a distance of 500 mm. |
| Overtravel | 2 mm |
| Free travel | 3 to 5 mm |
| Unlocking travel | 7 to 8 mm |
| Total travel | 10 to 13 mm |
